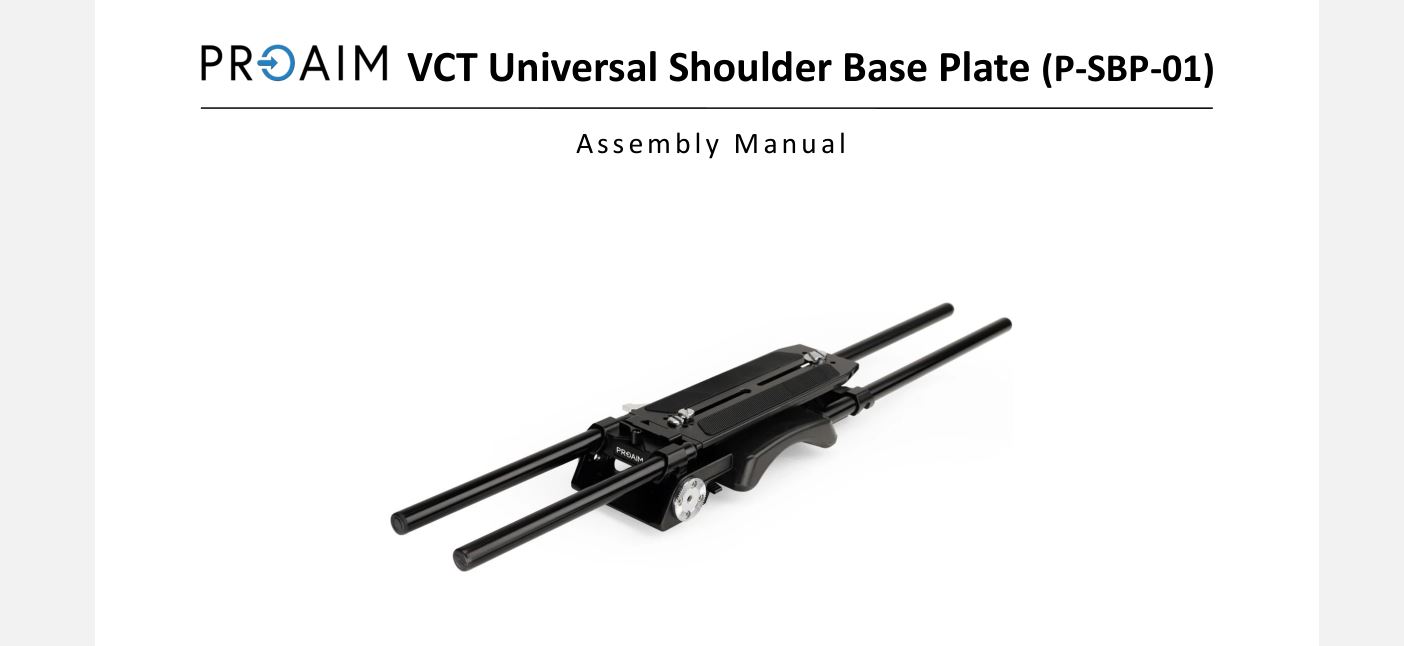

PROAIM P-SBP-01 VCT Universal Shoulder Base Plate User Guide

by
PROAIM P-SBP-01 VCT Universal Shoulder
Base Plate User Guide



PROAIM P-SBP-01 VCT Universal Shoulder Base Plate User Guide

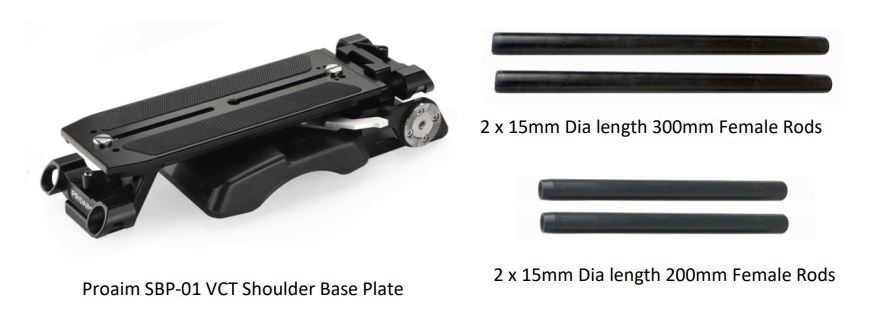

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.



PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - overview

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

Shoulder Base Plate Setup

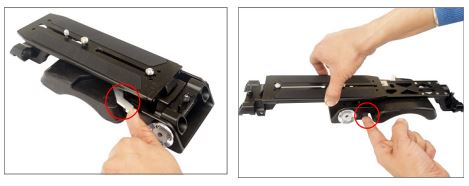

  • Press the safety pin on the shoulder base plate and push the black pin upwards so that the top plate can quickly move out.
    PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - Press the safety pin on the shoulder
  • Mount the camera by aligning the camera’s mounting thread with the top plate, as shown in the image.

    PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - Mount the camera by aligning the camera's
    Note    : The shoulder plate has 1/4″-20 and 3/8″-16 threaded holes for storing additional screws.

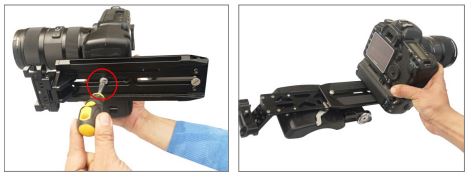

  • After mounting the camera, secure it using a screwdriver. Now attach the top plate to the bottom plate and slide it inwards.
    PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - After mounting the camera, secure it using
    Note: The baseplate features a front-to-back sliding plate for quick positioning of your camera and accessories and optimum adjustment of your camera’s weight distribution.
  • Set the camera’s position and lock it by pushing the safety pin.
    PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - Set the camera's position and lock
    Note: Shoulder Baseplate allows quick attaching/detaching camera setup fastened by safety pins and ratchet knobs.

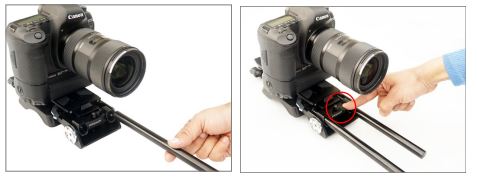

  • Insert the 200mm long female rods and secure them properly with the help of a ratchet knob.PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - Insert the 200mm long female rods

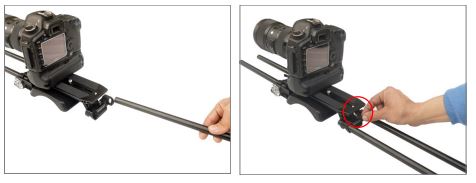

  • Insert the 300mm long rods from the opposite side of the shoulder base plate and secure them with the help of a ratchet knob.
    PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - Insert the 300mm long rods
    Note: There are 15mm(dia) rods on the front and back to accommodate more camera accessories.
    Note: Shoulder base plate also supports RED (DSMC2), Arri (Amira and Alexa Mini), Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3), Canon (C200, C300, C300M2, C700), Panasonic (EVA1, Cinema Varicam LT 4k S35), Blackmagic (Ursa Mini), and many other camera models with interchangeable lenses.

    PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - Shoulder base plate also supports RED

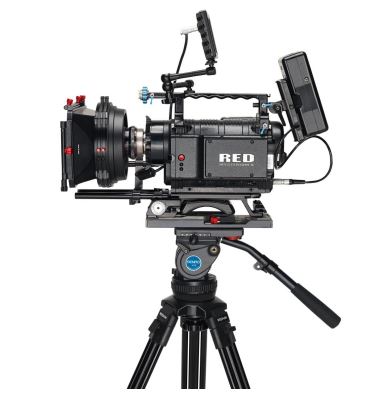

YOUR PROAIM VCT UNIVERSAL SHOULDER BASE PLATE
ALL DRESSED UP AND READY TO GO!

PROAIM P-SBP-01 VCT Universal Shoulder Base Plate - SHOWN WITH OPTIONAL ACCESSORIES

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please contact us immediately and we promise our utmost support and care until you use our product.
